Shiyin Dong

Multimodal language model

Mary MLLM

Teaching a small language model to see, with a vision encoder and a two-layer bridge.

Code

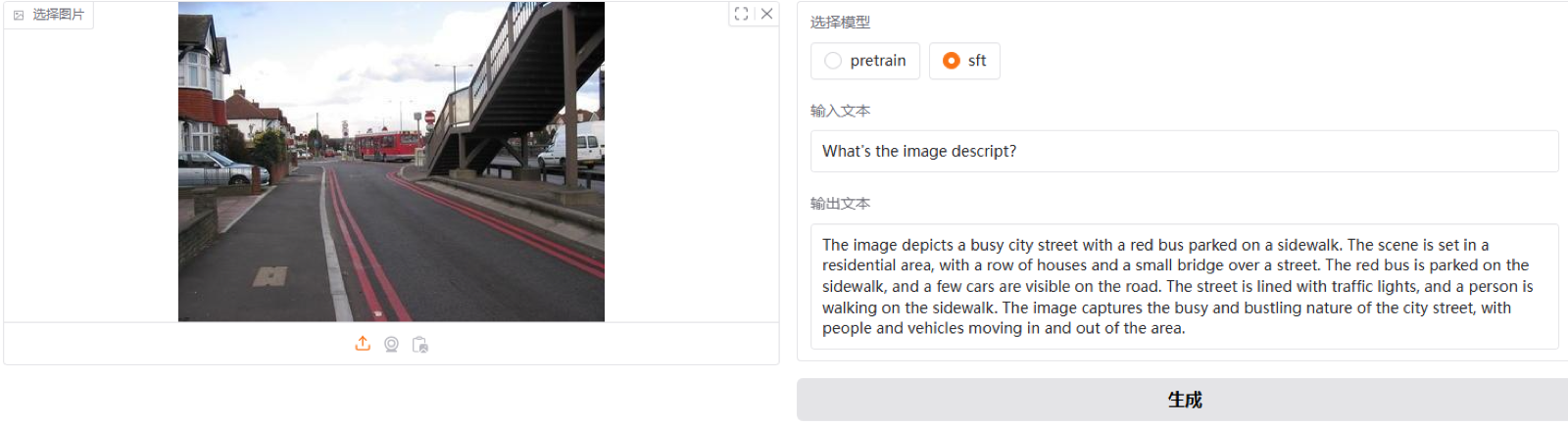

After SFT the model describes a street scene in full sentences; the same image after pre-training only gets a short caption.
After SFT the model describes a street scene in full sentences; the same image after pre-training only gets a short caption.
169
image tokens per image
0.5B
language model
2
training stages

Overview

Mary MLLM connects an existing vision encoder to an existing small instruction-tuned language model, and trains only the connection between them. The language model never sees pixels — it sees a short sequence of tokens produced from the image, in the same embedding space as its words.

Training happens in two stages: first captions to teach the bridge to align images with language, then instruction data so the answers become detailed rather than one-line captions. The qualitative comparisons below show that shift, and also where a 0.5B model still falls short.

Components

SigLIP (so400m, patch14, 384px)
The vision encoder. It is trained to put images and their captions close together in one space, so its output already carries language-aligned meaning rather than raw pixels.
Qwen2.5-0.5B-Instruct
The language model — small enough to train on consumer GPUs, and already instruction-tuned, so it can follow a question once it can read the image.
MLP projector
A 2-layer network that maps downsampled vision features into 169 image tokens shaped like word embeddings. This is the only bridge between the two models.
DeepSpeed
Training framework used to fit the two-stage runs onto 4 × RTX 3090.

Architecture

Image → SigLIP → MLP projector → image tokens, concatenated with the text tokens.
Image → SigLIP → MLP projector → image tokens, concatenated with the text tokens.

Training stages

  1. 01

    Pre-training on captions

    LLaVA-CC3M-Pretrain-595K. Aligns the projector output with the language model's embeddings; answers stay short.

  2. 02

    Instruction fine-tuning

    LLaVA-Instruct-150K. Teaches the model to answer questions about the image instead of naming what is in it.

Pre-train vs. SFT

Same image, same prompt, before and after the instruction stage.

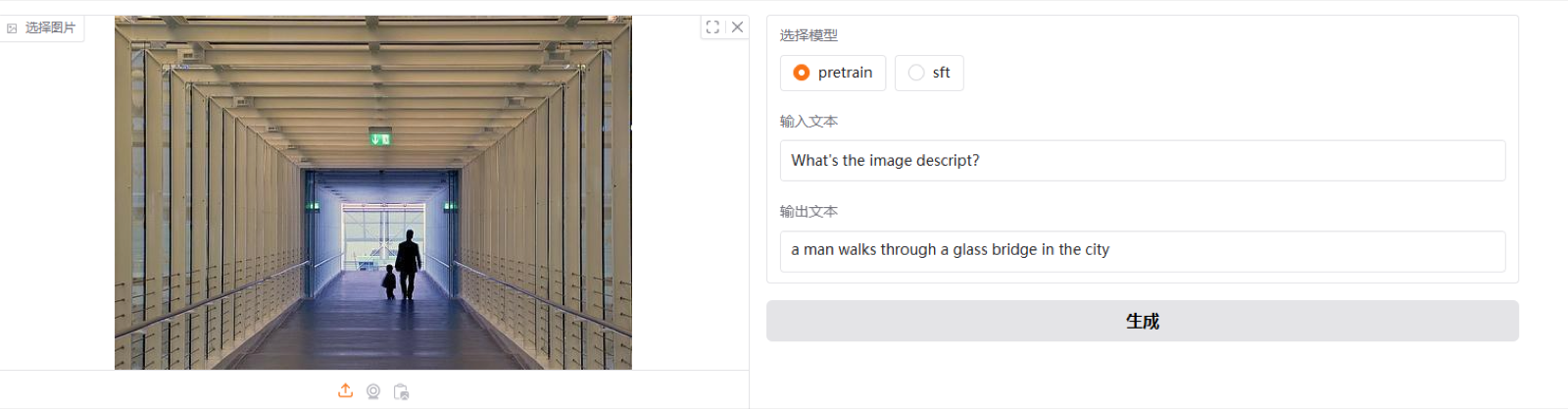

Pre-train · walking scene
Pre-train · walking scene

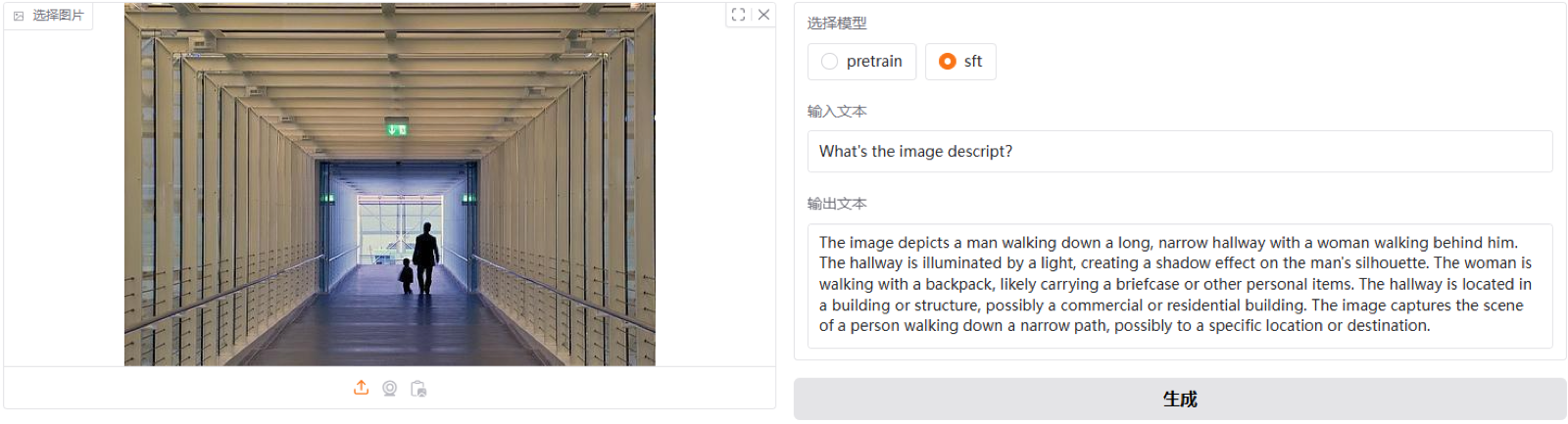

SFT · walking scene
SFT · walking scene

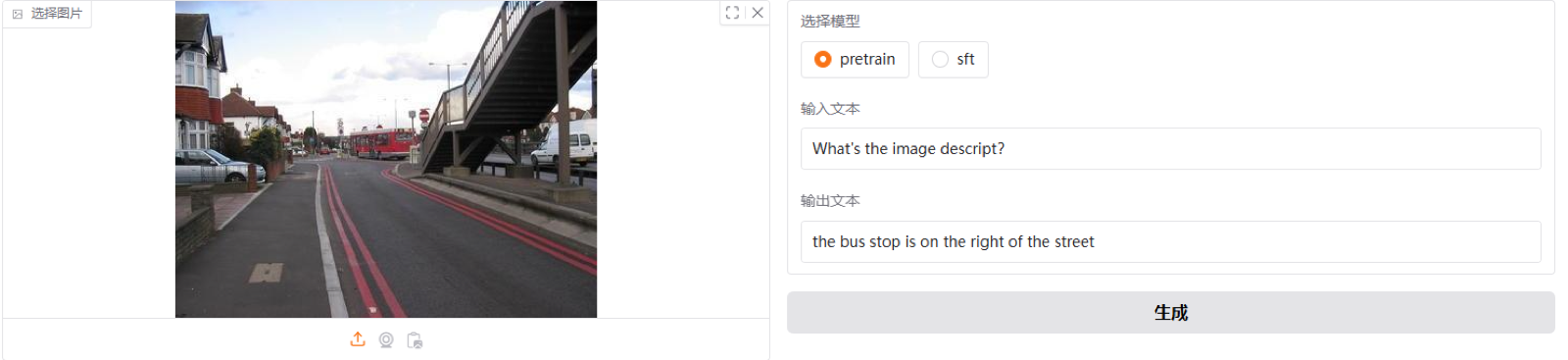

Pre-train · city street
Pre-train · city street
SFT · city street
SFT · city street

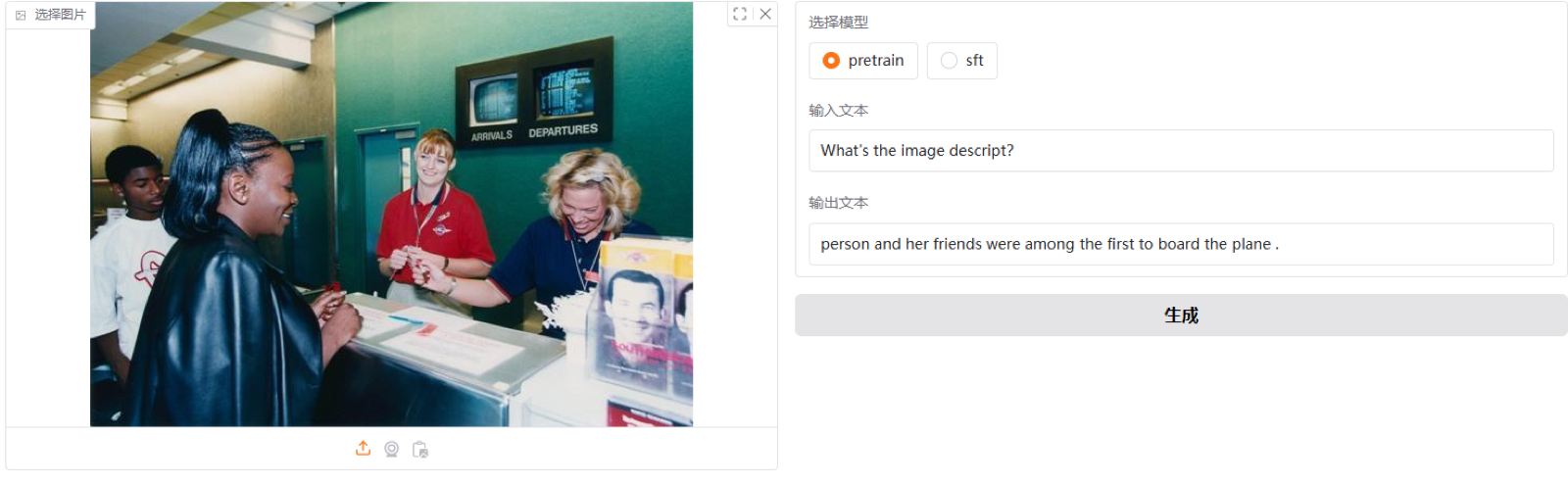

Pre-train · people
Pre-train · people

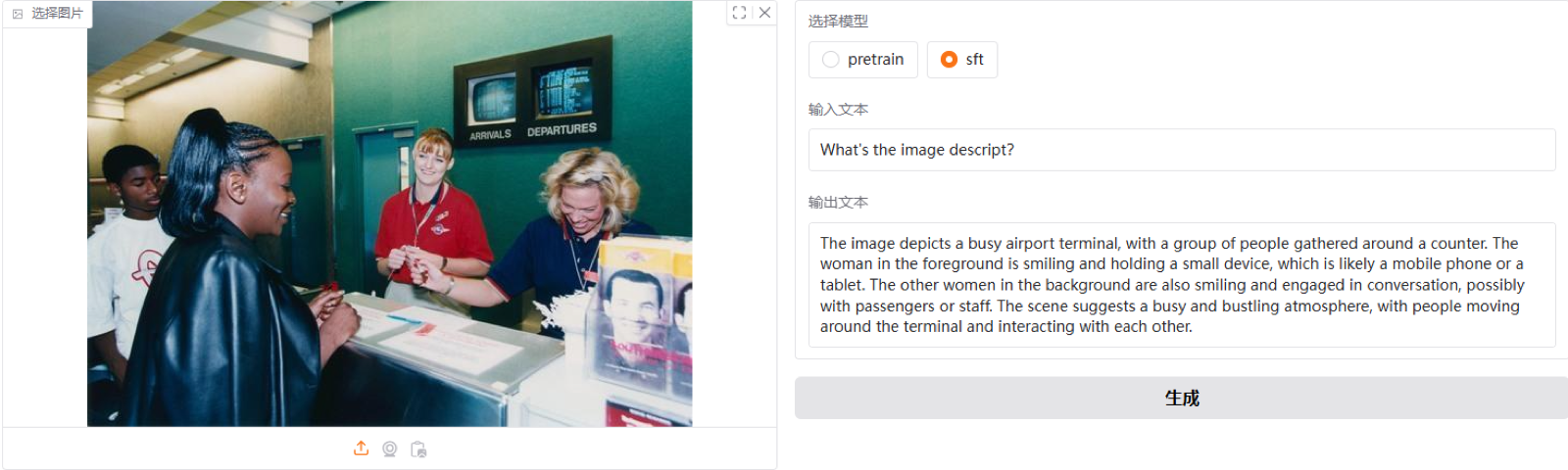

SFT · people
SFT · people

Training environment

Hardware
RTX 3090 × 4
Data
LLaVA-CC3M-Pretrain-595K · LLaVA-Instruct-150K
